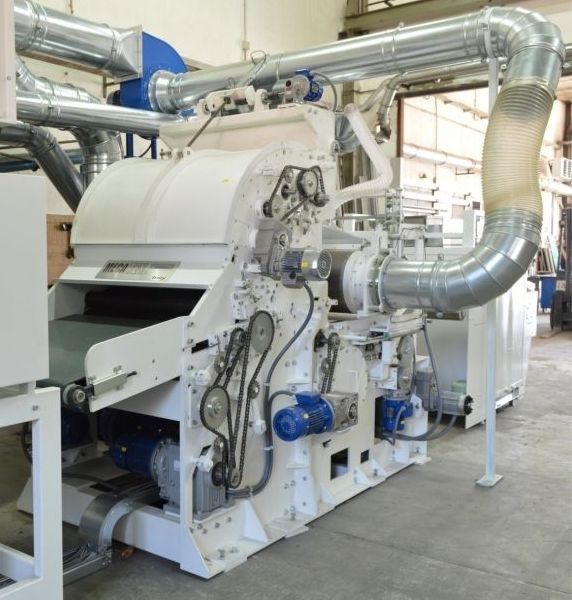

AIRLAY CARD Mod. CA-300

Working height: From 1000 to 4000 mm

Side wall distance Working height: +100 mm

Processable fibers: All new and regenerated fibers, including blends with natural and vegetable fibers. Fiber fineness ranges from /= 30 dtex, fiber length from 0.8/10 mm up to a maximum of 90 mm. The machine's capacity for a specific fiber fineness depends on the fiber length itself.

Grammage: 150 – 3000 (g/m²)

Production capacity:

New fibers:

Working height: 1000 mm: 250 kg/h

Working height: 2500 mm: 600 kg/h

Regenerated fibers:

Working height: 1000 mm: 500 kg/h

Working height: 2500 mm: 1200 kg/h

Output speed: 1 – 20 m/min. (other speeds available upon request).

Air circulation volume: ~ 2 x max. 18,000 m³/h, 2 x max. 15 kW adjustable via inverter.

Compressed air: 7 bar

Installed electrical power: ~ 60 kW approx. – depends on working height

Electrical connection: 3 x 380 V + N + E / 50 Hz

Machine weight: Depends on working width

Machine dimensions:

Length: 3000 mm

Width: Side wall distance + 1000 mm

Maximum height from ground: 3000 mm
